Naphthalene is significant as a simple polycyclic aromatic hydrocarbon and a key industrial chemical. Its structure—two fused benzene rings—serves as a model for understanding aromaticity and resonance in organic chemistry. The molecule is planar, with carbon–carbon bonds of varying lengths (1.37 Å and 1.42 Å), consistent with the valence bond model and cross-conjugation. Naphthalene reacts more readily than benzene in electrophilic aromatic substitution, with electrophiles attacking the alpha position. Its main industrial use is as a precursor to phthalic anhydride via oxidation. Historically, it was the primary ingredient in mothballs, used as a fumigant against textile moths. Naphthalene is produced mainly from coal tar, which is about 10% naphthalene by weight. Trace amounts are produced naturally by magnolias, some deer species, and the Formosan subterranean termite.

Did You Know?

• Naphthalene's odor is detectable at concentrations as low as 0.08 ppm.
• The molecule has bilateral symmetry across three planes, giving two sets of equivalent hydrogen atoms: alpha and beta positions.
• Pure crystalline naphthalene has a resistivity of about 10^12 Ω·m at room temperature, dropping more than a thousandfold on melting.
• Naphthalene is the most abundant single component of coal tar, typically about 10% by weight.

A Contested Discovery and a Name Born from Naphtha

The story of naphthalene's identification is one of near-simultaneous claims and layered contributions. In 1819, Alexander Garden reported isolating a silvery crystalline solid from coal tar distillate, noting its resemblance to camphor and benzoic acid. Just two days after Garden filed his paper, William Thomas Brande submitted his own account of the same substance. John Kidd then produced a more thorough investigation, establishing that the material was composed of carbon with a small amount of hydrogen. Garden's and Brande's findings both appeared in print in 1820, while Kidd's detailed characterization followed in 1821. It was Kidd who coined the name "naphthaline," drawing on the older term naphtha—a catch-all for volatile, flammable liquid hydrocarbon mixtures such as coal tar. Michael Faraday pinned down the molecular formula C10H8 in 1826. The structural picture took another four decades to solidify: Emil Erlenmeyer proposed the fused double-benzene-ring arrangement in 1866, and Carl Gräbe confirmed that picture in 1869.

A Planar Molecule with Two Faces: Alpha and Beta

Naphthalene's architecture is deceptively simple yet structurally rich. Two benzene rings share a pair of carbon atoms, producing a flat, planar molecule of ten carbons and eight hydrogens. The eight peripheral carbons each bear a single hydrogen, and IUPAC convention numbers them 1 through 8 around the outer edge, while the two shared atoms are designated 4a and 8a. X-ray diffraction revealed that the carbon–carbon bonds are not uniform: the C1–C2, C3–C4, C5–C6, and C7–C8 bonds measure roughly 1.37 Å, while the remaining bonds stretch to about 1.42 Å. This alternation aligns with the cross-conjugation theorem, which pictures one ring as a fully aromatic benzene unit weakly coupled to a diene segment. The molecule enjoys bilateral symmetry across the shared-carbon axis and across the plane bisecting the C2–C3 and C6–C7 bonds, yielding two distinct sets of equivalent hydrogens: the alpha positions (1, 4, 5, 8) and the beta positions (2, 3, 6, 7). This symmetry means a single substituent can occupy only two non-equivalent sites, giving rise to alpha- and beta-substituted isomers. Other fused-ring isomers with the same formula include azulene, with its five-membered and seven-membered ring pair, and bicyclo[6.2.0]decapentaene, featuring a four-membered ring fused to an eight-membered one.

Reactivity That Favors the Alpha Position

Naphthalene is notably more reactive than benzene toward electrophilic aromatic substitution. Chlorination and bromination proceed without any Lewis-acid catalyst, yielding the 1-substituted products directly. Alkylation is equally facile; beyond standard Friedel–Crafts conditions, naphthalene accepts alkyl groups from alkenes or alcohols in the presence of sulfuric or phosphoric acid. One notable exception is anhydrous aluminium chloride, which instead triggers polymerisation in which one ring of each monomer sacrifices its aromaticity, linking neighbouring units at the 1- and 4-positions. The preference for alpha substitution over beta is rooted in resonance. The cationic intermediate formed at an alpha carbon can be drawn in seven resonance forms, four of which retain a fully aromatic ring; the beta intermediate offers only six forms, just two of them aromatic. Sulfonation illustrates the kinetic-versus-thermodynamic divide: at 25 °C the 1-sulfonic acid dominates, but at 160 °C the 2-isomer takes over. On the reduction side, alkali metals generate dark blue-green radical anion salts such as sodium naphthalenide, strong reducing agents. High-pressure hydrogenation over metal catalysts first gives tetralin and, with continued hydrogenation, decalin. The most industrially important transformation is catalytic oxidation with vanadium pentoxide, which cleaves one ring to produce phthalic anhydride—the reaction underpinning naphthalene's principal commercial use.

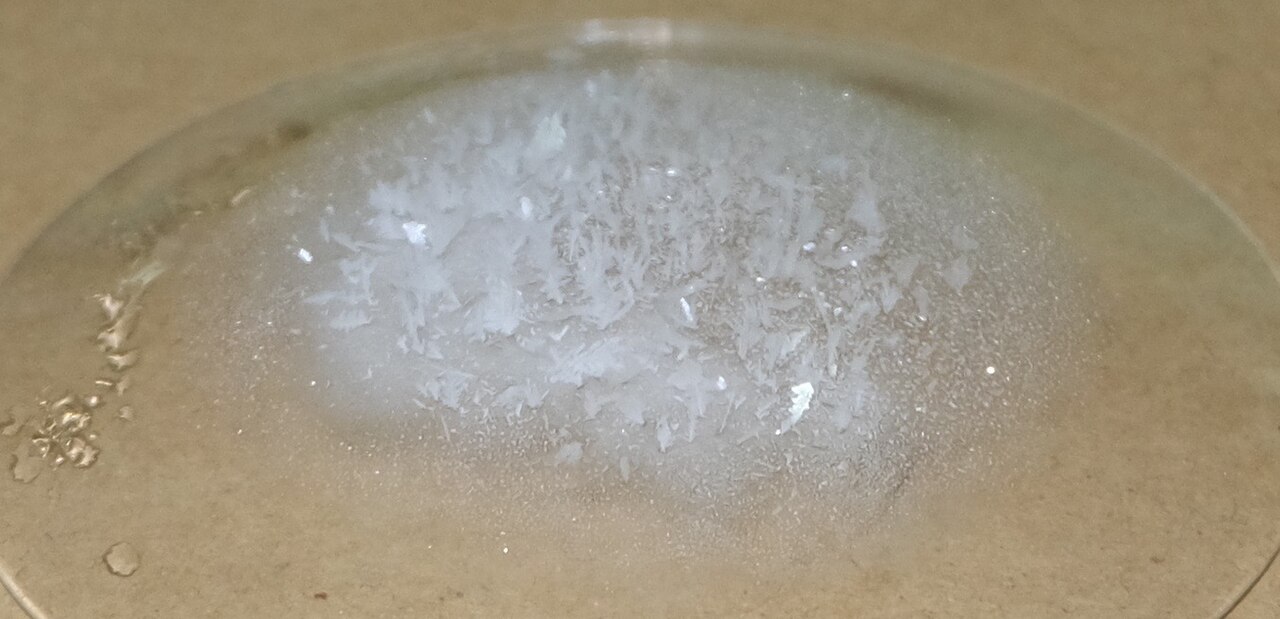

From Coal Tar to the Global Market

Naphthalene's journey from raw material to commodity has shifted over the decades. Between the 1960s and the 1990s, petroleum refineries extracted meaningful quantities from heavy fractions during the refining process. Today, however, the dominant source is coal tar, in which naphthalene is the single most abundant component. The exact composition of coal tar fluctuates depending on the type of coal used and the specific processing conditions, making supply somewhat variable. By 2023, the global naphthalene market had reached 2.25 million tons annually. Beyond its industrial role as a feedstock for phthalic anhydride, naphthalene is perhaps best known to the general public as the principal ingredient in traditional mothballs. Its white crystalline form and a distinctive, penetrating odor—detectable at concentrations as low as 0.08 parts per million—make it unmistakable in household settings. The compound also presents interesting electrical behavior. In its pure crystalline state at room temperature, naphthalene is a moderate insulator with resistivity around 10¹² Ω·m. Upon melting, that resistivity drops by more than a thousandfold to roughly 4 × 10⁸ Ω·m. In both phases, resistivity follows an Arrhenius-type temperature dependence, and below 100 K the solid exhibits semiconducting character.
